Documente

Cofraj pentru plansee MevaFlex - prezentare generala

prezentare generala

pdf 2.8 MB Engleza
Cofraj pentru plansee MevaFlex

Cofraj pentru plansee MevaFlex - instructiuni de montaj

instructiuni de montaj

pdf 2.7 MB Engleza
Cofraj pentru plansee MevaFlex

Cofraj pentru plansee MevaFlex - prezentare detaliata

prezentare detaliata

pdf 6.2 MB Engleza
Cofraj pentru plansee MevaFlex


Nu gasiti ce ati cautat?

Cerere document

Specificatii

MevaFlex

dimensiuni - A×B [cm]

dimensiuni - A×B [cm]

160×160

domeniu de utilizare

domeniu de utilizare

cofraj sustinerea placilor prefabricate

masa/suprafata [kg/m²]

masa/suprafata [kg/m²]

16

material

material

lemn (grinzi H20)
otel (piese)

MevaFlex, adaptable to suit every building geometry. Tried-and-tested technology. Easy to install and use.

The conventional slab formwork

MevaFlex is a tried-and-tested, conventional slab formwork with facings, cross beams and girder stringers on props or shoring towers. Economical, flexible and efficient, you can trust its durable and robust design to get the job done.

Cofraj pentru plansee MevaFlex
Cofraj pentru plansee MevaFlex

Unrestricted by modular dimensions, MevaFlex plays by its own rules. All geometric constructions can be created, saving on materials, effort and costs. The positioning of the beams and props is not predefined, and can be optimised in accordance with the slab thicknesses during the planning phase. The system is therefore suited to all sorts of applications in varying building layouts as well as slabs of every length, width and thickness.

Cofraj pentru plansee MevaFlex
Cofraj pentru plansee MevaFlex

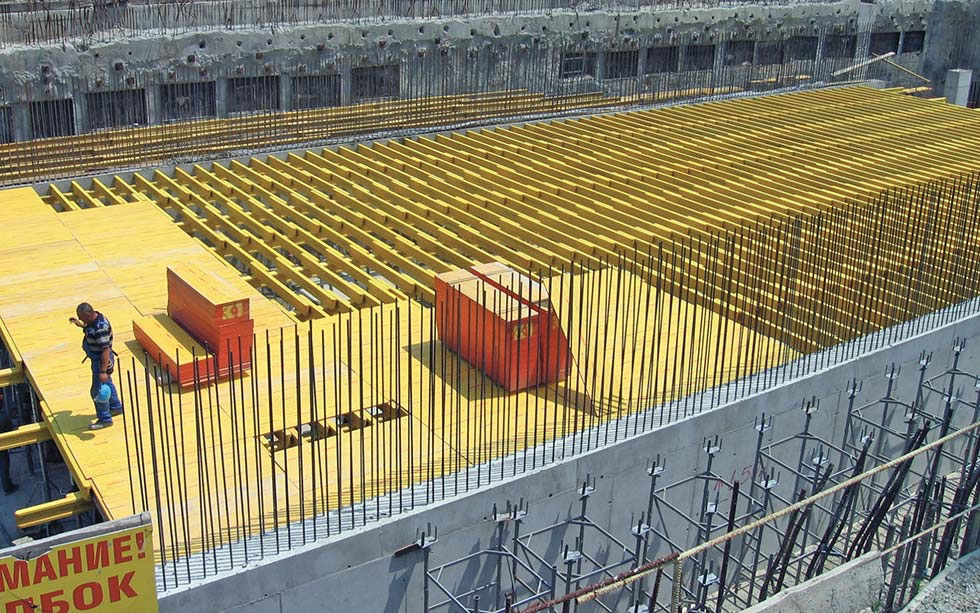

Flexible even for large surface areas

High degree of efficiency with only three components

  • Prop with forked prop head
  • Formwork girder H20 or aluminium girder stringer
  • Facing.

Girder stringers and cross beams

  • Independent of grid pattern.

Bracing

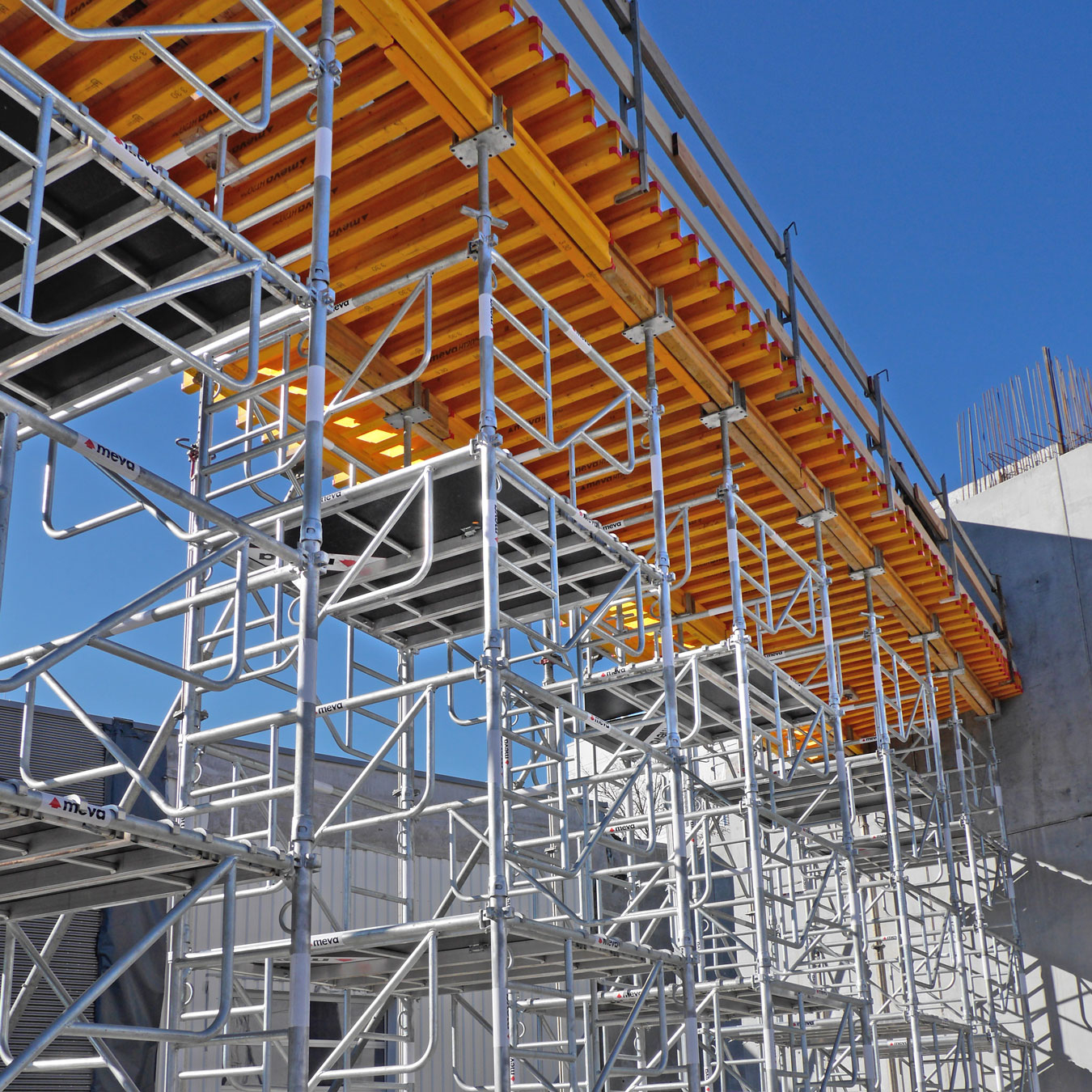

  • Can be freely selected from MEVA’s range of props and shoring towers.

Pays for itself after just a few applications.

Proven track record
MevaFlex is the ideal solution to support prefabricated slabs.

Technical Information
Materials H20 beams (wood), props and other parts made from steel.
Grid Grid Independent.
Drophead Stripping  No.
Components Props, Fork Head, tripod, facing panel, h20 girder for stringer and joist.

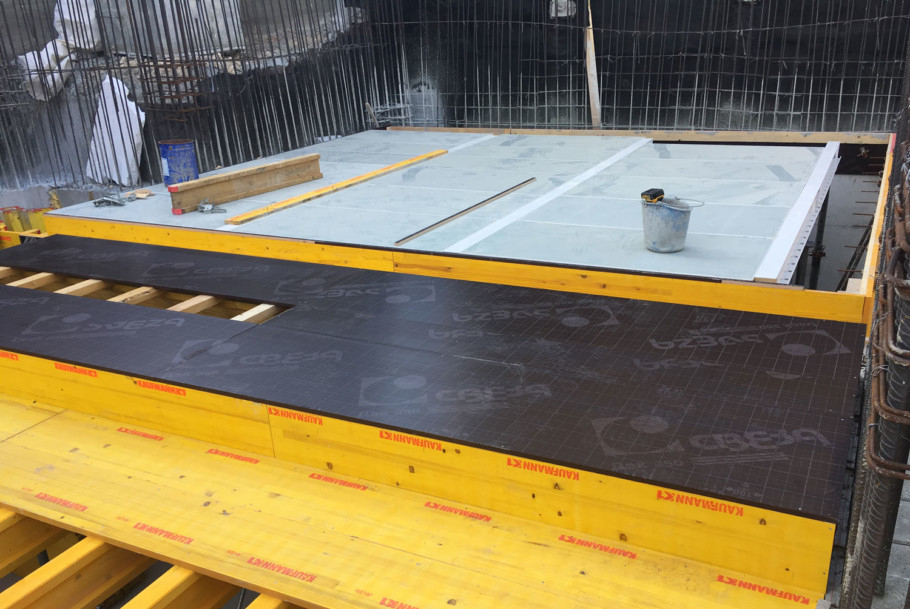

Facings 3S, alkus or alternatives.
Shoring EuMax props, ME props, MEP props.
(Safety) Railing Railing clamps.
Cofraj pentru plansee MevaFlex
Cofraj pentru plansee MevaFlex

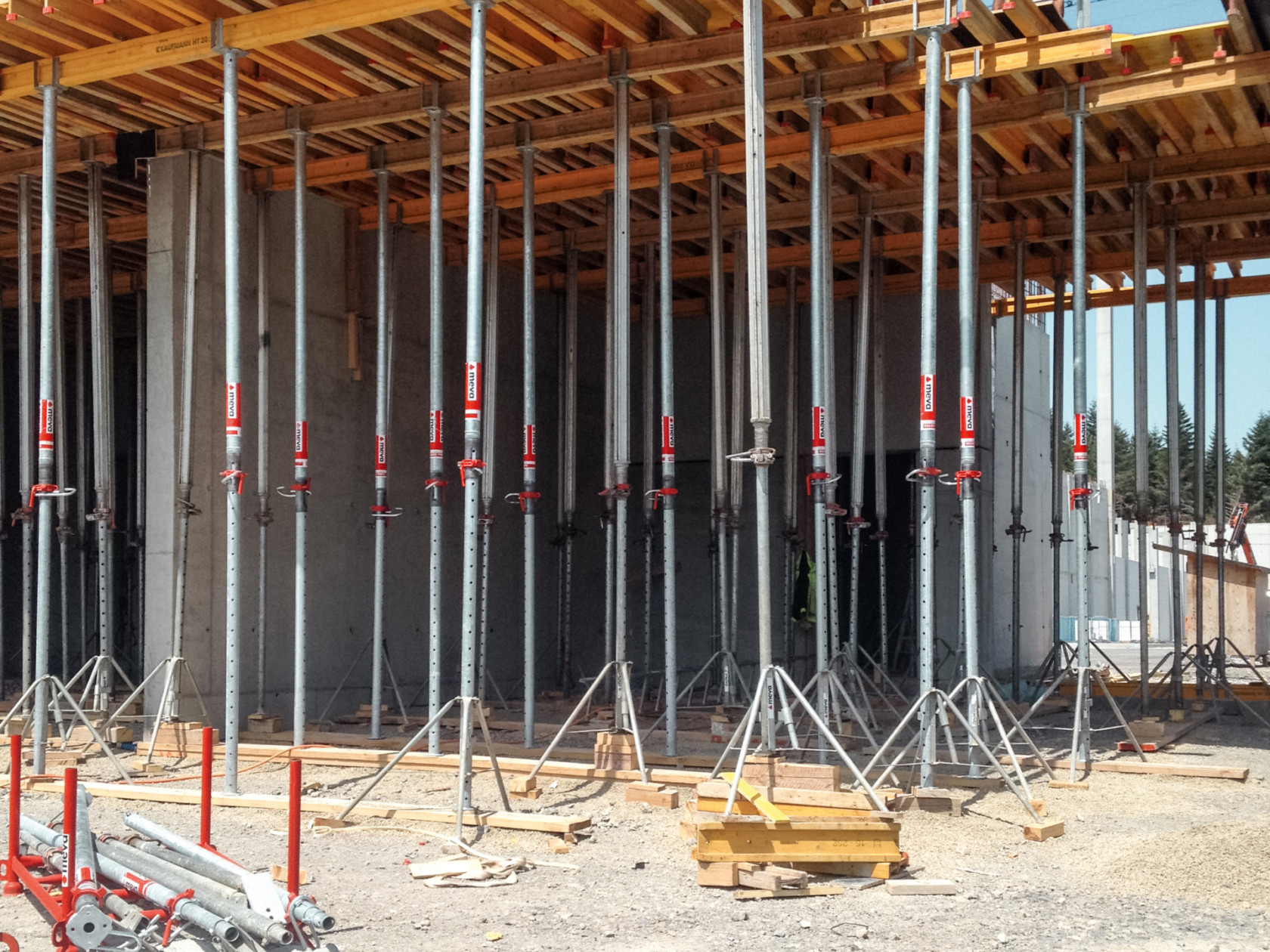

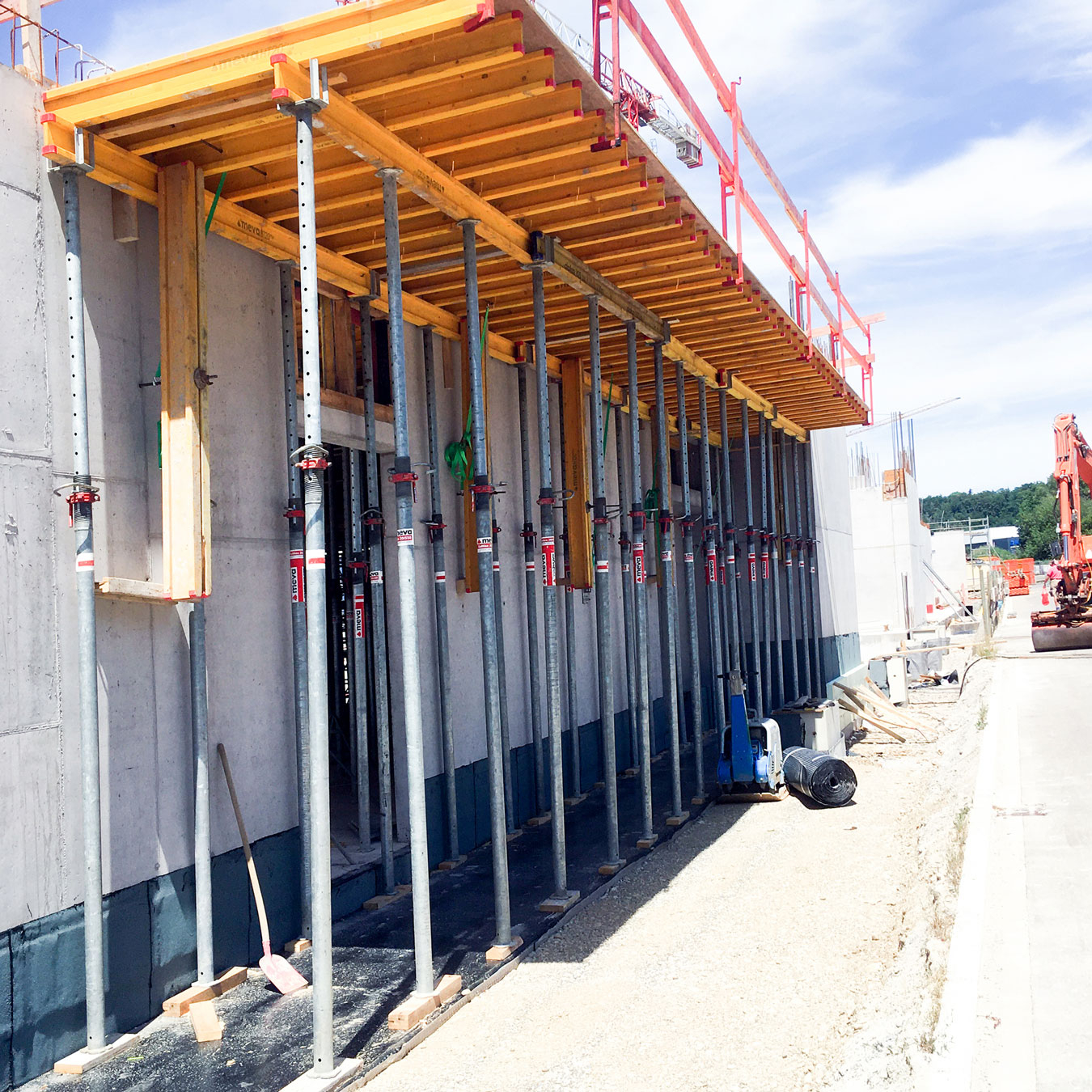

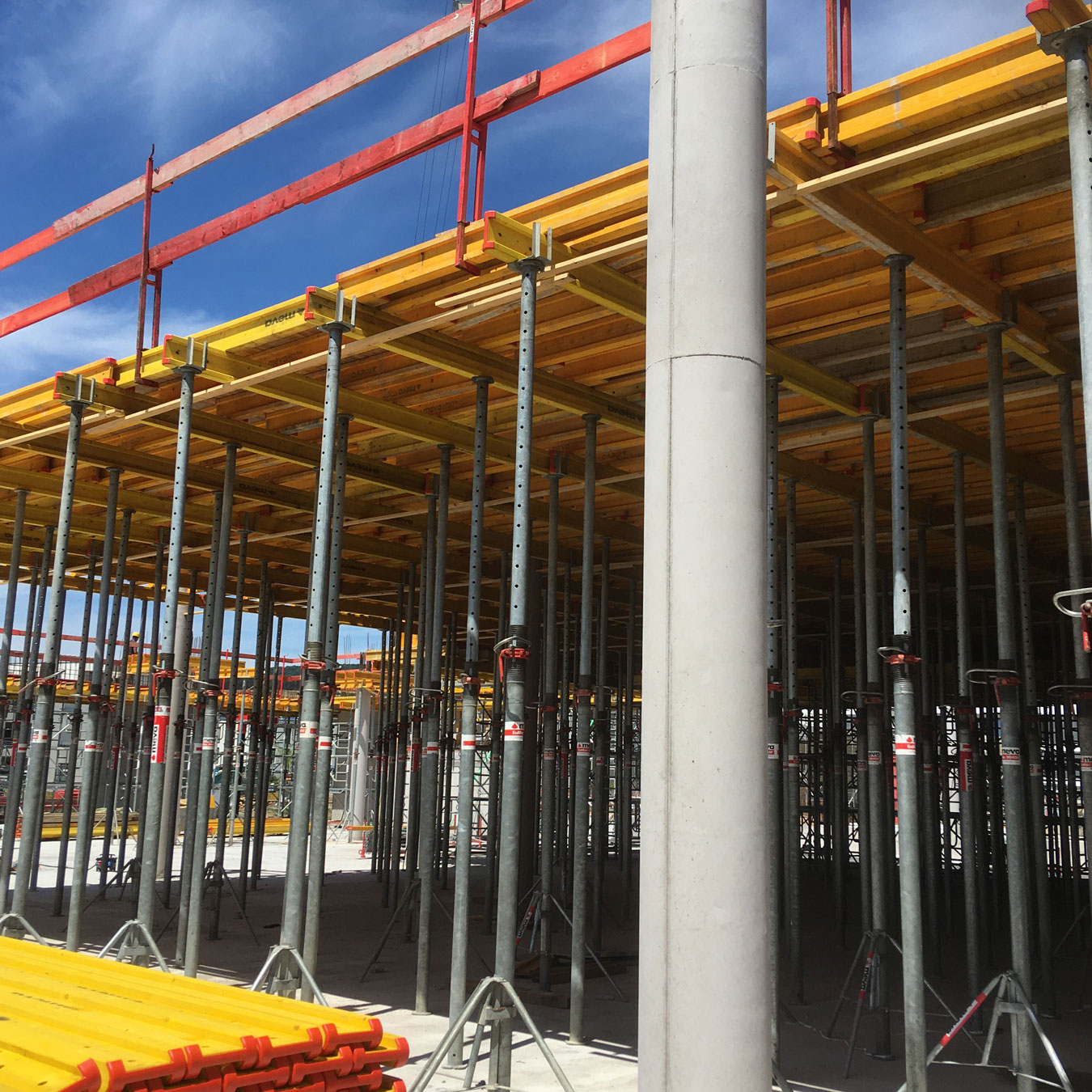

Tried and tested
Conventional slab formwork with facings, cross beams and girder stringers on props or shoring towers.

Cofraj pentru plansee MevaFlex
Cofraj pentru plansee MevaFlex

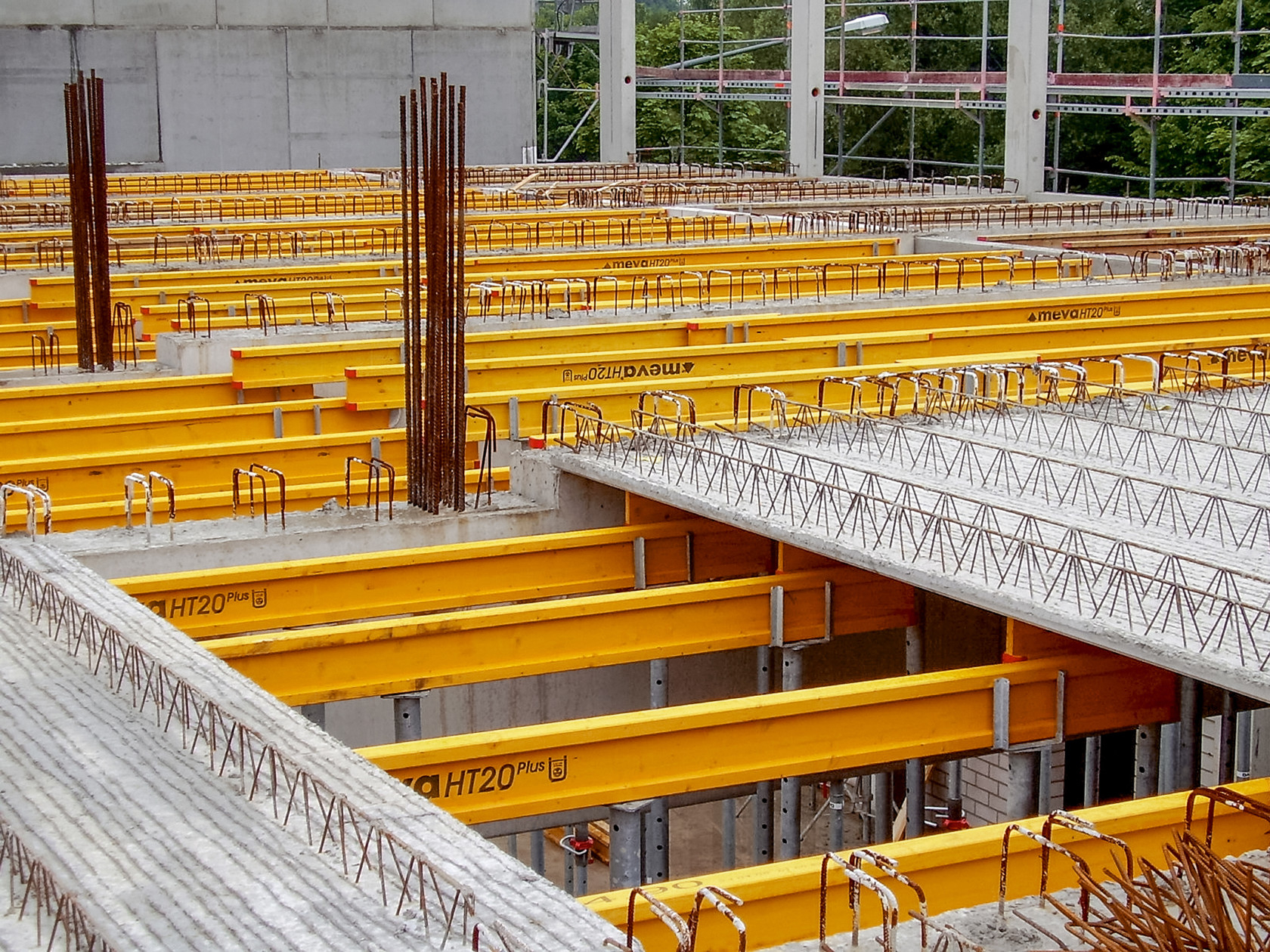

The ideal solution
MevaFlex is the ideal solution for supporting prefabricated slabs.

Cofraj pentru plansee MevaFlex
Cofraj pentru plansee MevaFlex

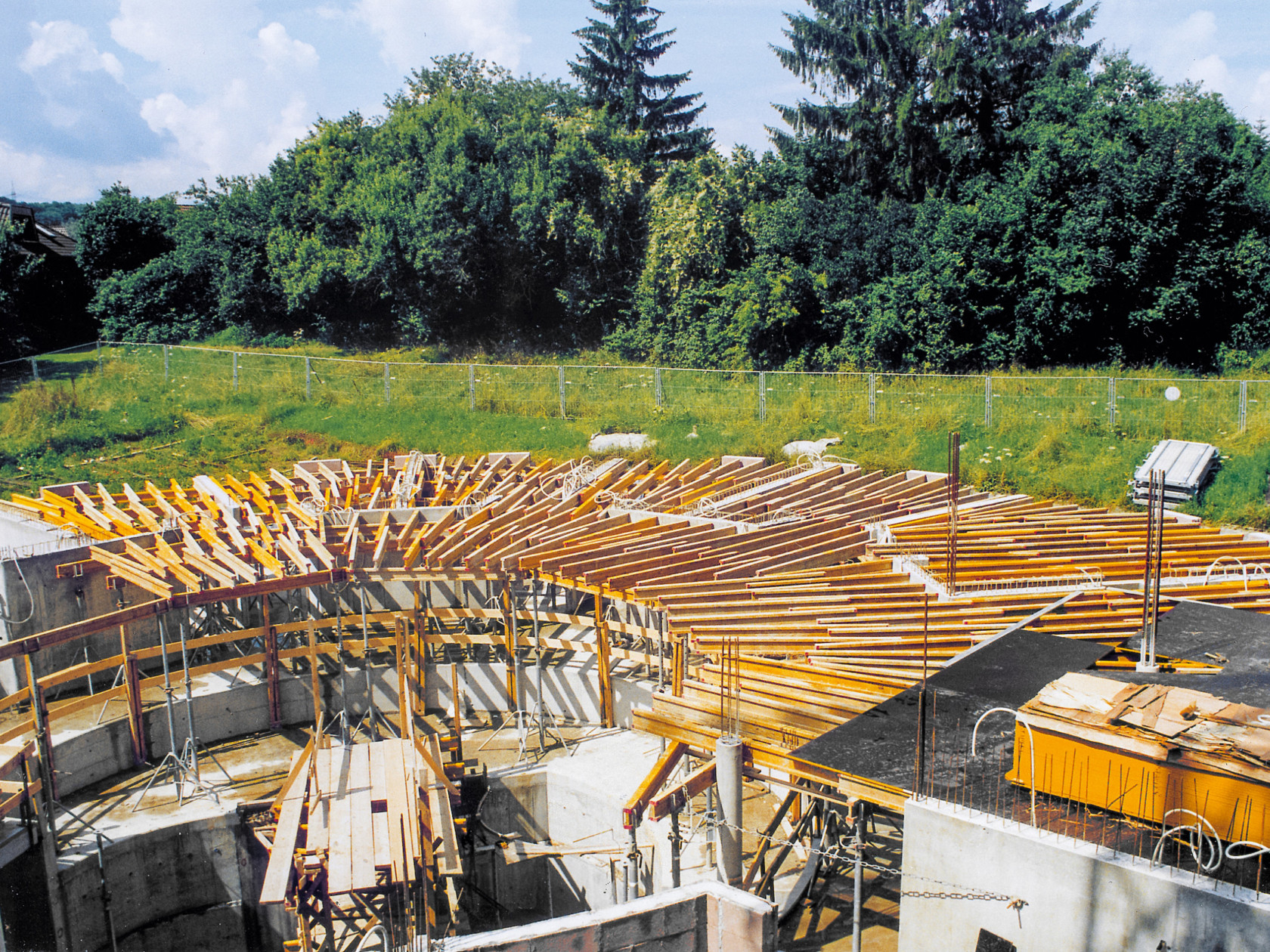

Multiple applications
Whatever the geometry, MevaFlex accommodates such a diverse range of schemes.
