The new all in one iGuzzini Blade R lighting

iGuzzini Blade R from chaos to order

Blade R advances the concept of integration into architecture by combining lighting solutions and integrates safety, entertainment, light and service management devices to meet the needs of architects called on to offer coordinated aesthetic solutions and respond to the multi-functional needs of contemporary environments involving a growing number of different aspects.

Galerie

Invisible sourse, ultimate comfort.

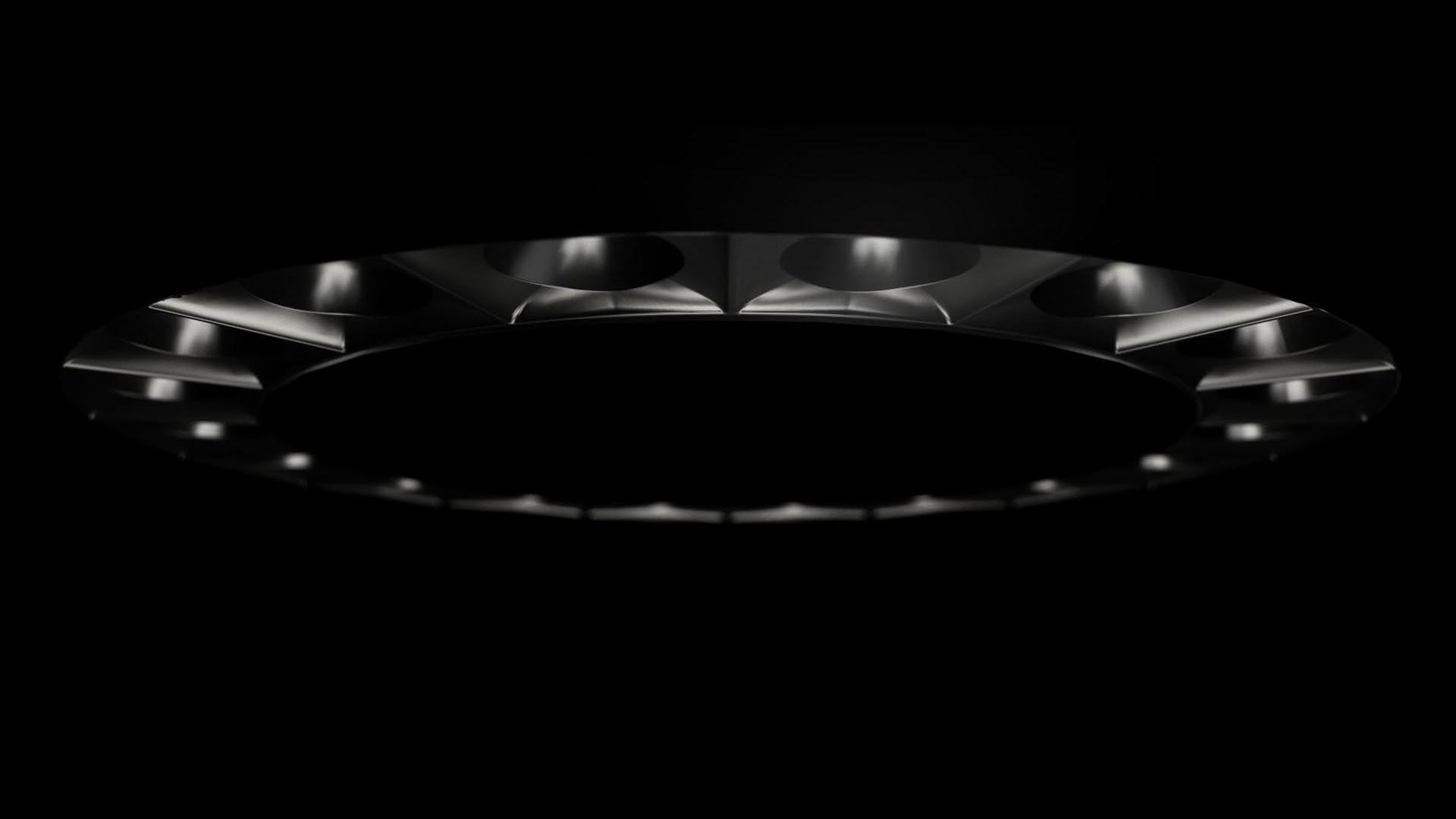

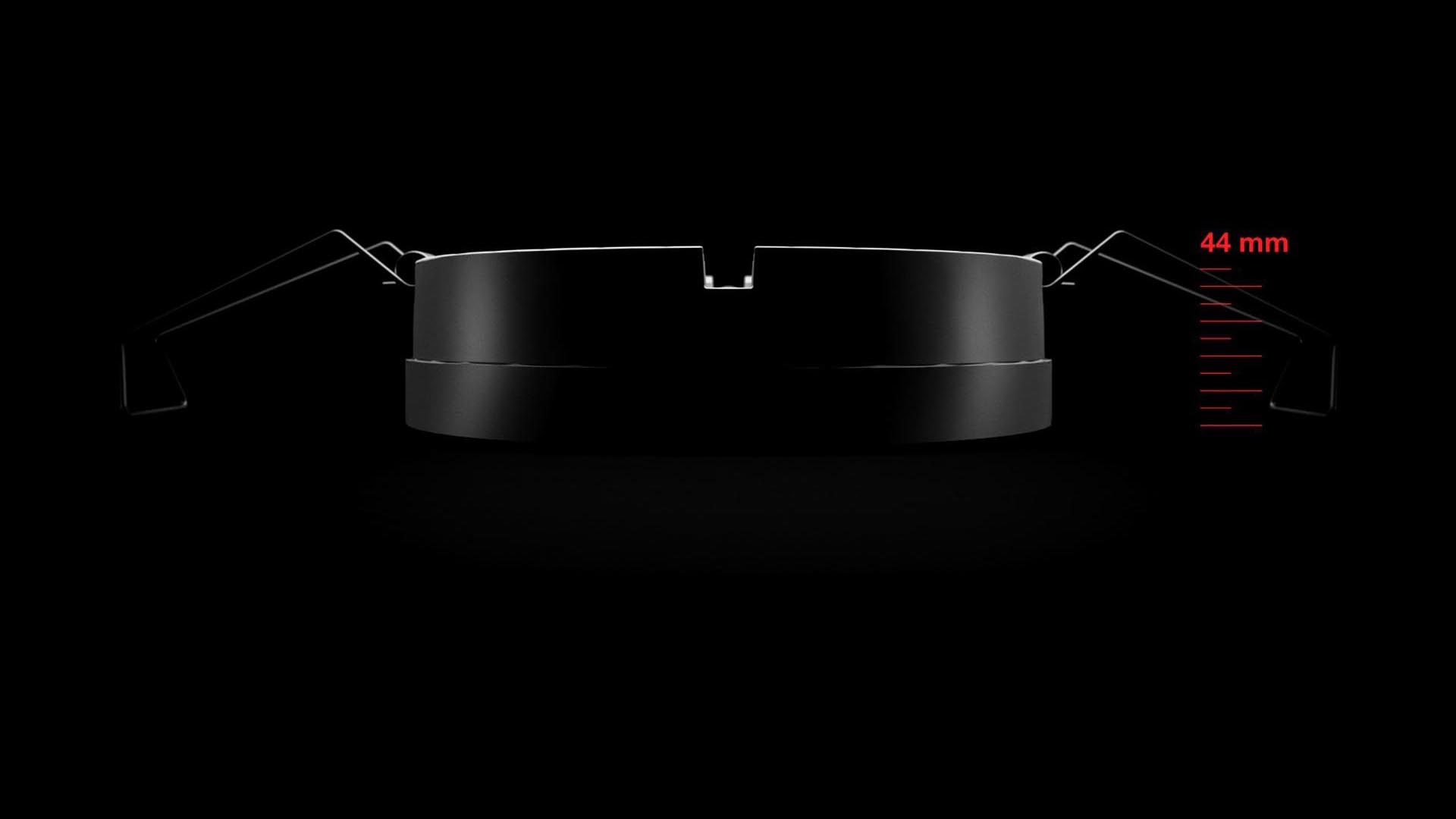

Blade R cuts across ceilings, liberating light and creating a circular ring of just 2 cm.

Galerie

Galerie

From chaos to order.
Blade R integrates to keep things simple and ensure ceilings are clean and harmonious. Absolute, functional and aesthetic integration. All in One

Galerie

Retail - old

Galerie

Retail - New Blade R

Galerie

Hospitality - old

Galerie

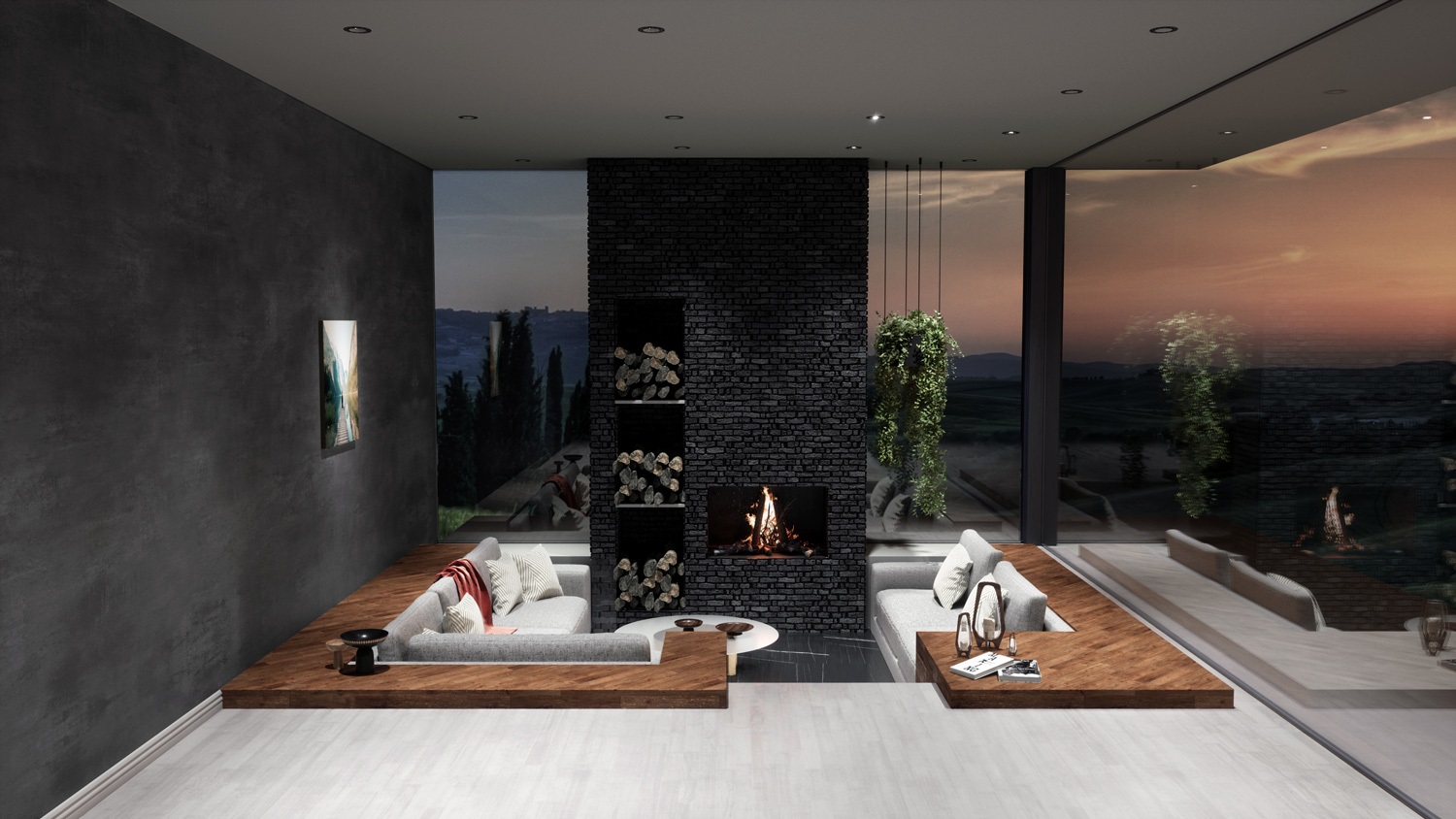

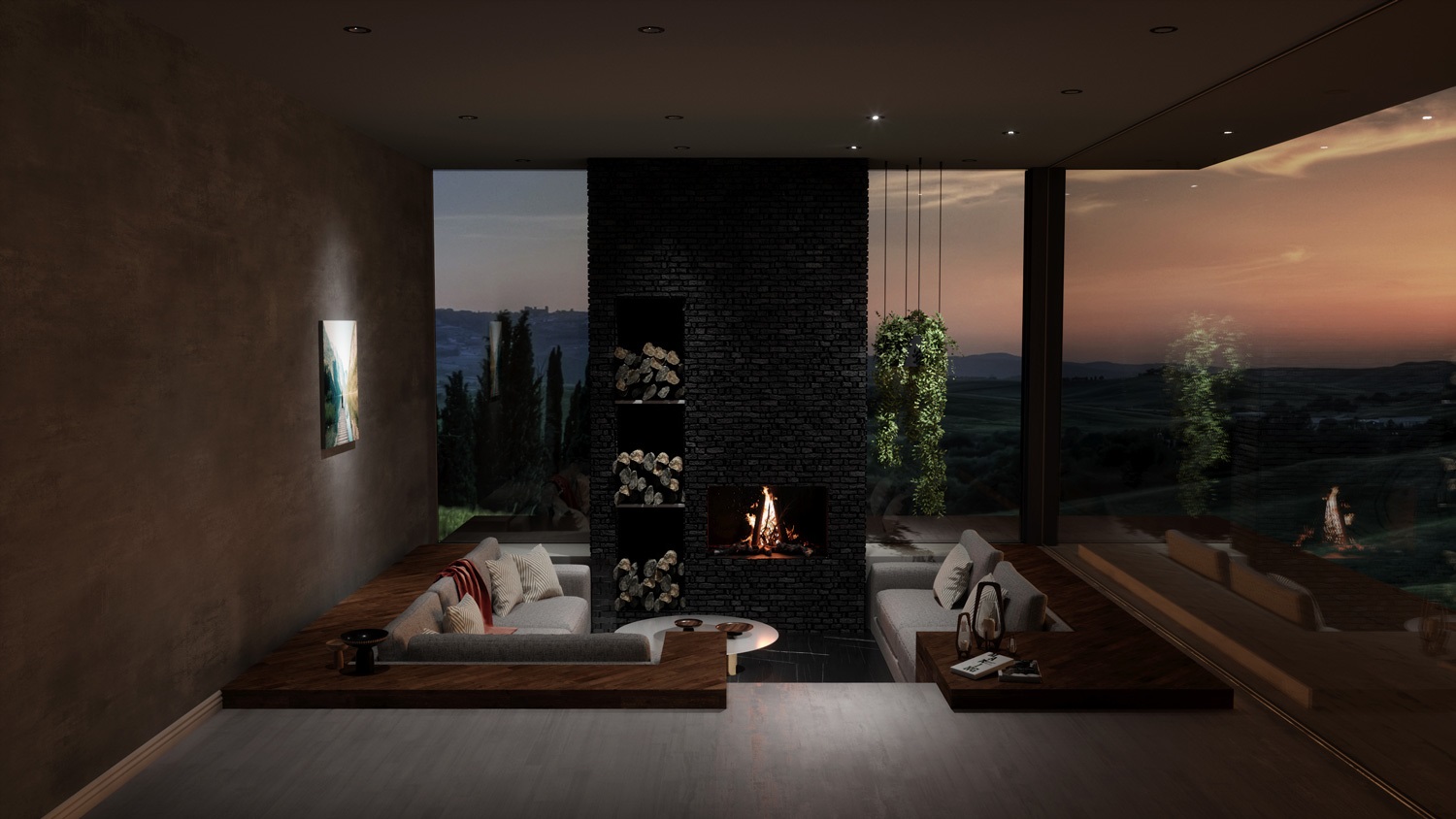

Hospitality - New Blade R

Galerie

Culture - old

Galerie

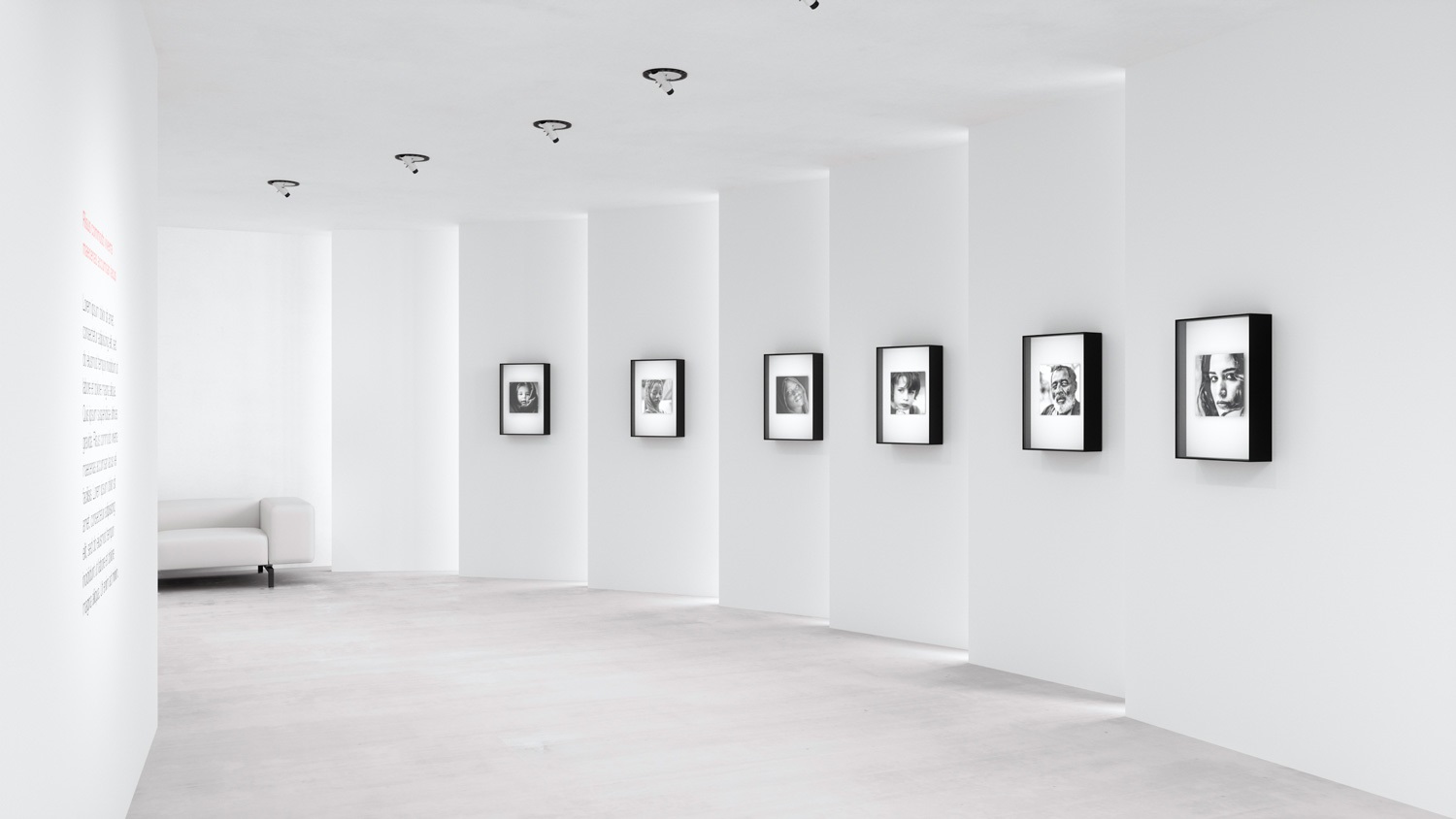

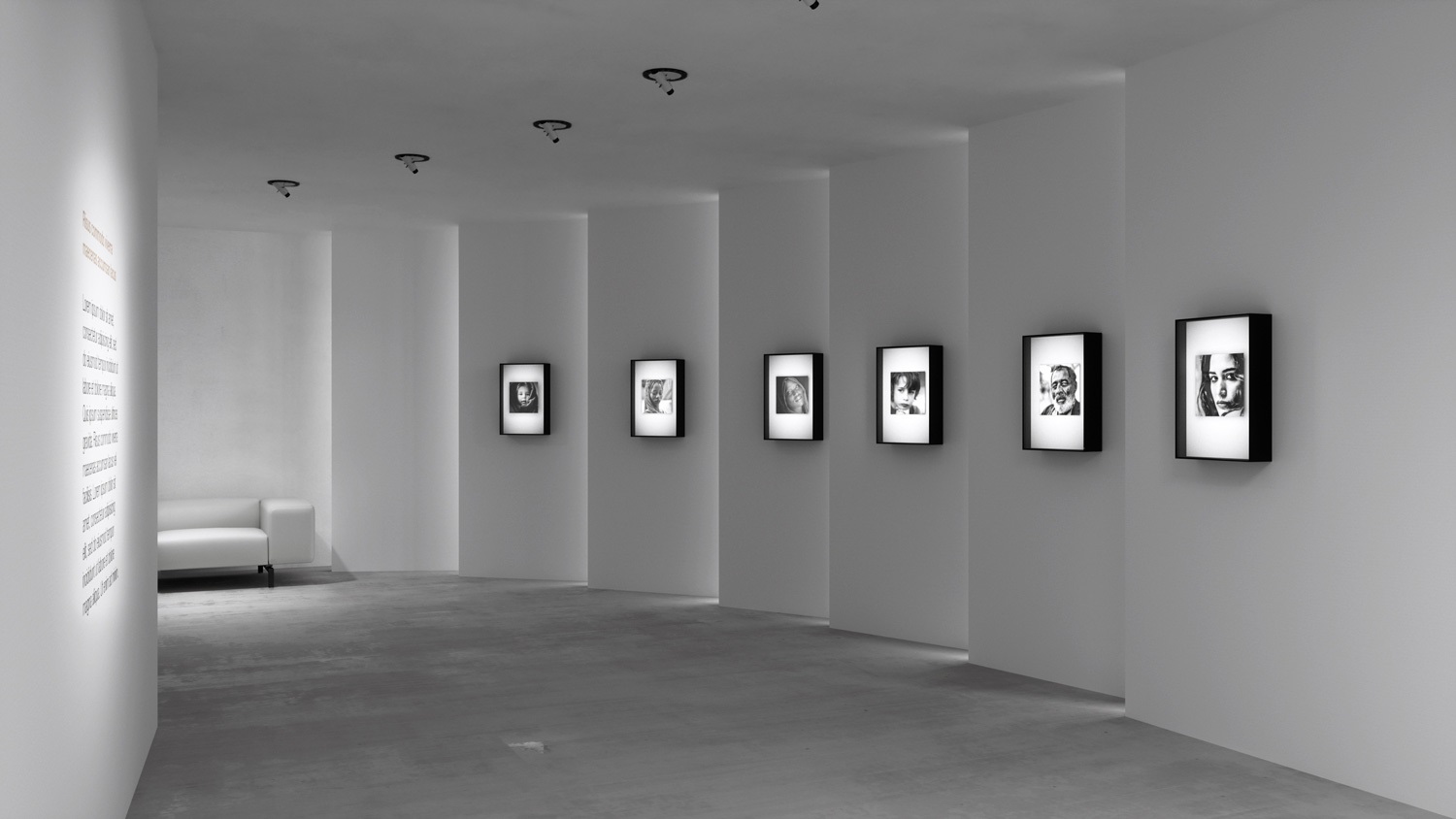

Culture - New Blade R

iGuzzini Blade R Overview

Galerie

80

Galerie

125

Galerie

170

Galerie

170 double

Blade R satisfies numerous space requirements, complying with safety standards and meeting changing trends in user behaviour.

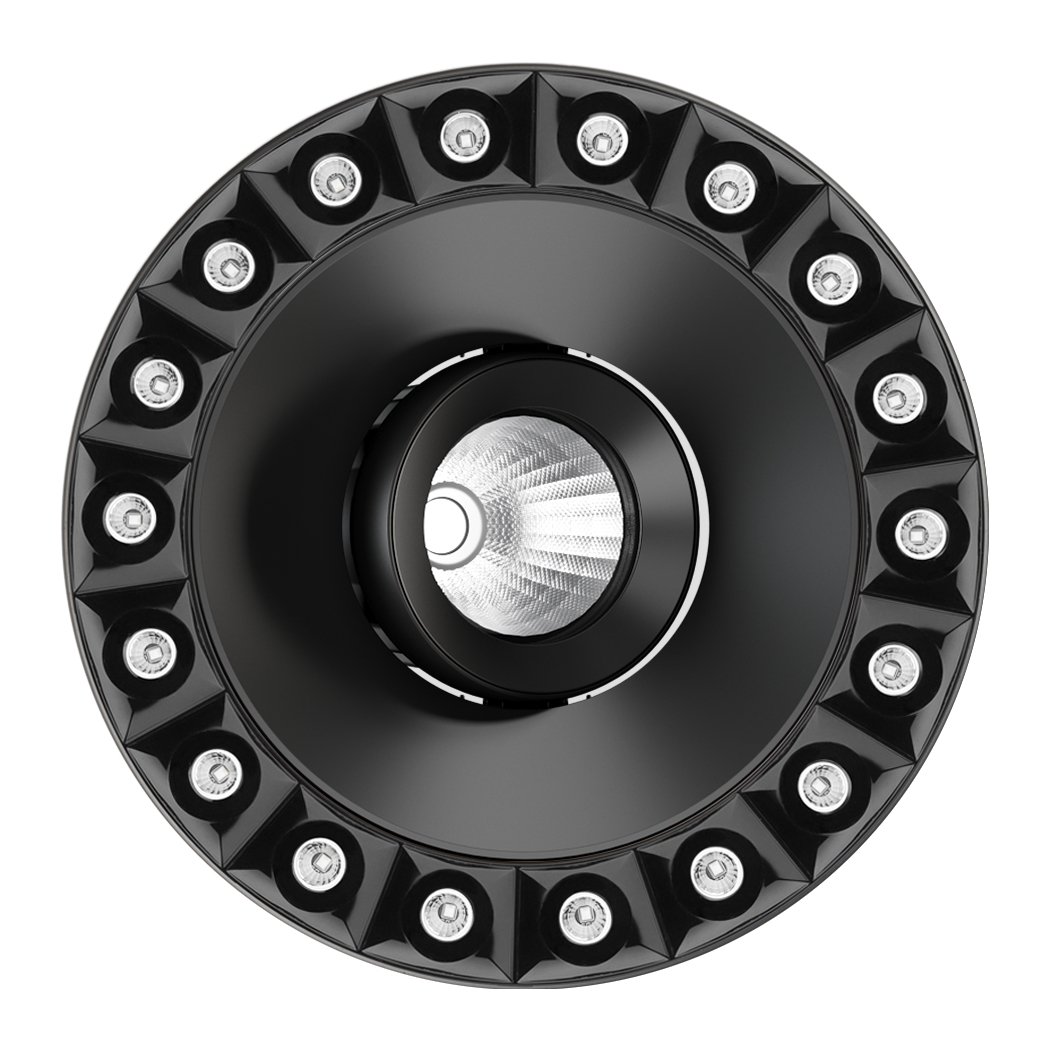

Blade R + Laser

ø 125 / ø 170

Double Adjustability. Integrated recessed luminaire with double adjustability (30° on the horizontal plane, 355° on the vertical axis).

Galerie

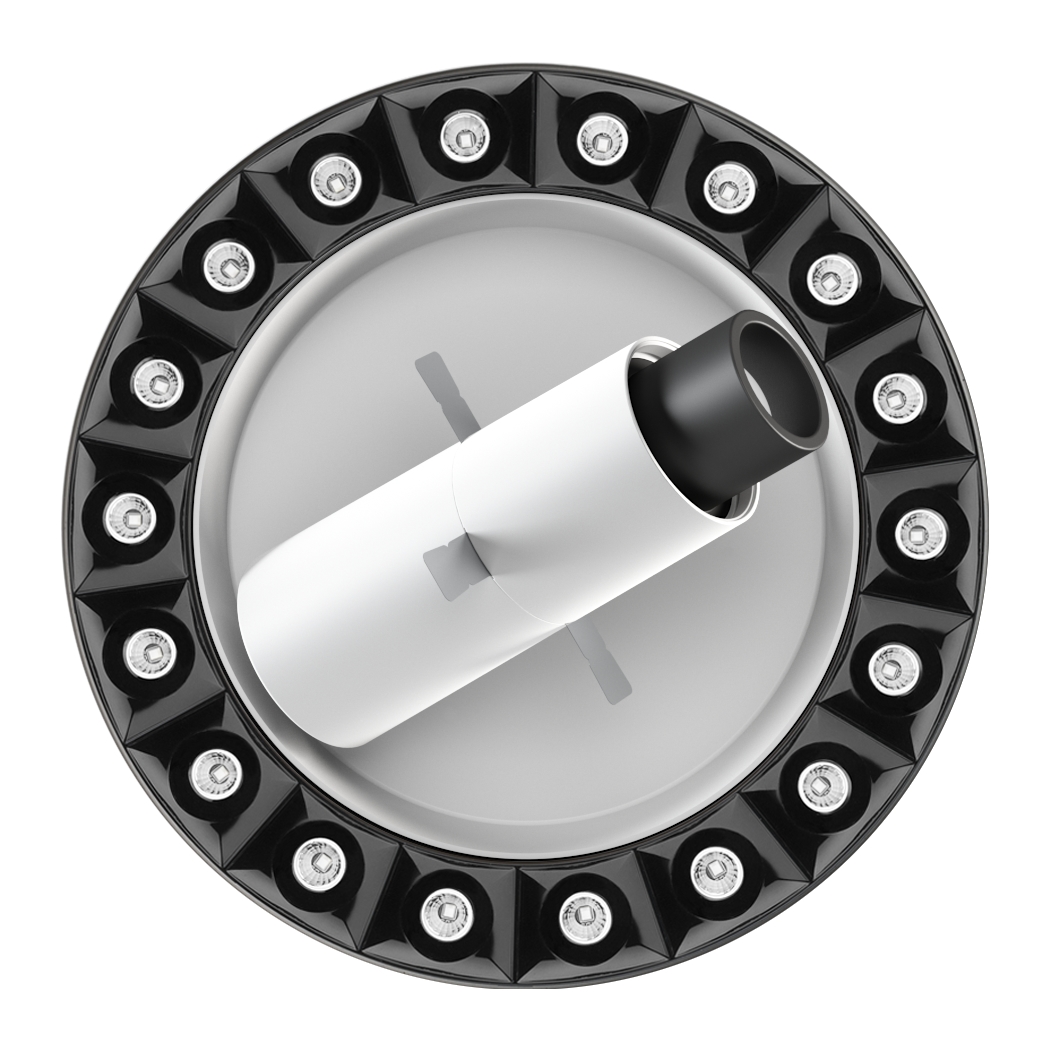

Blade R + Palco Framer

ø 125 / ø 170

Framed light. Integrated framer with precision adjustment without having to open the product and directional flaps for manual adjustment of shapes.

Galerie

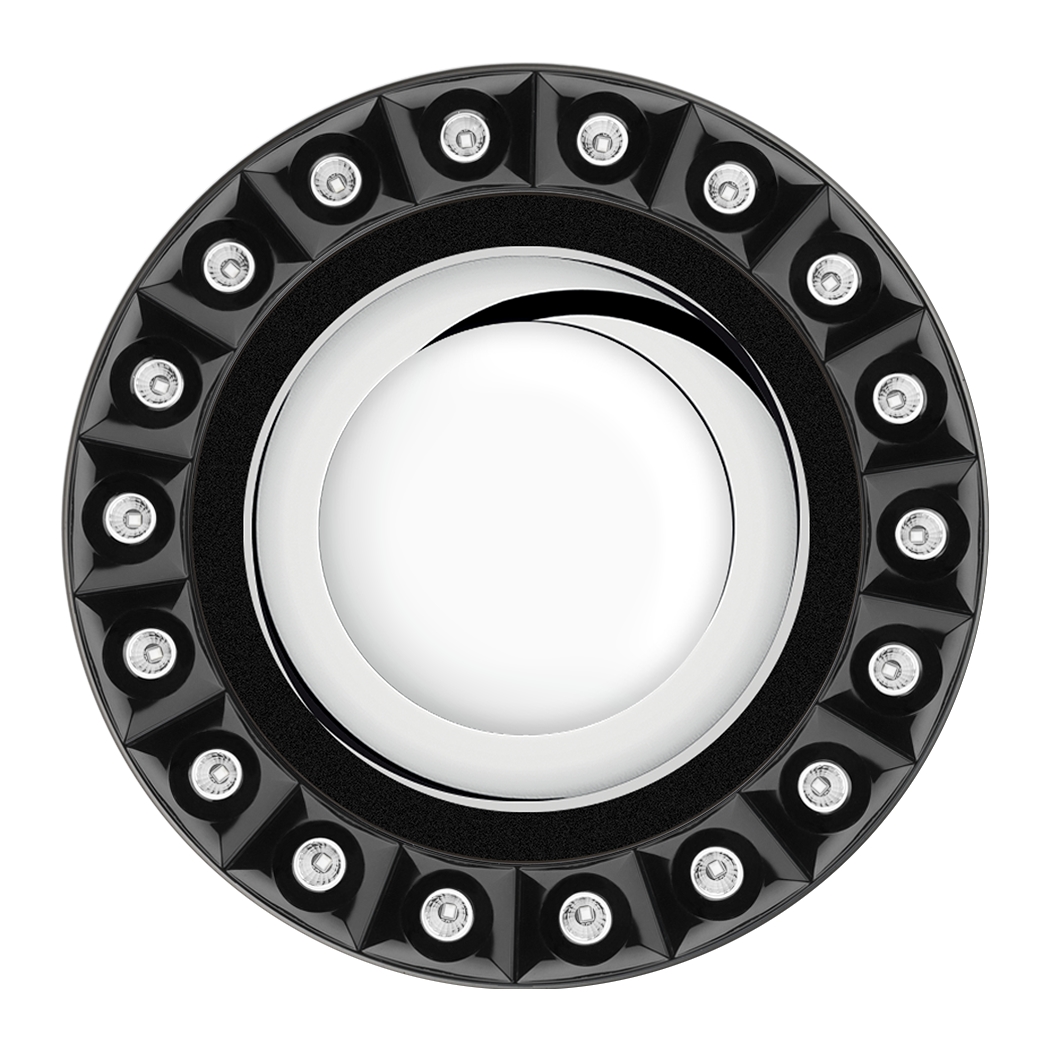

Blade R + Easy

ø 170

Variable light. Diffused light ensuring high visual comfort for total control of luminance. Monochromatic, tunable white and RGB versions.

Vertical light. High precision optics to illuminate walls from the ceiling to the floor.

Galerie

Light beyond light

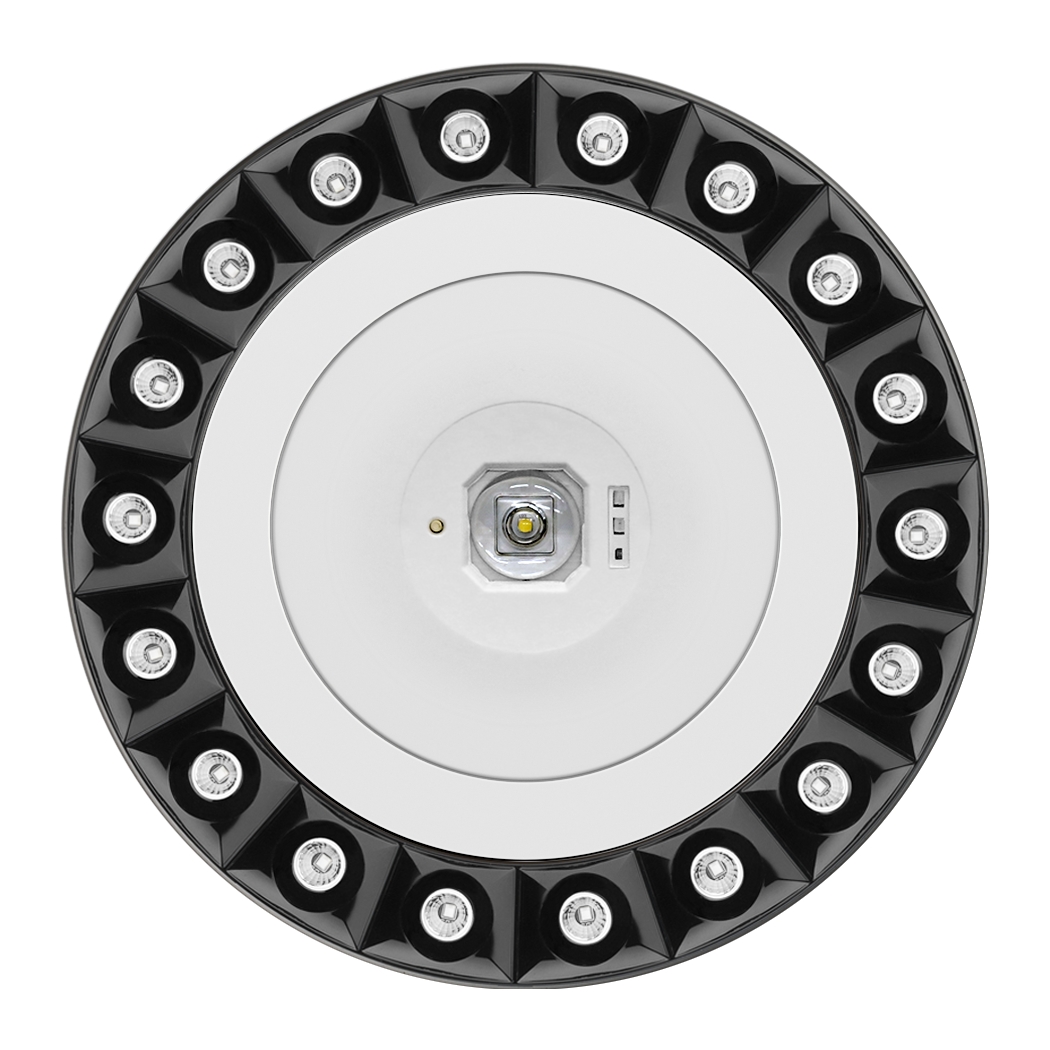

Blade R + emergency light

ø 170

Emergency lighting with optics for escape routes or anti-panic open areas. 3 h autonomy, non-maintained lighting. Ultimate safety for every power feed condition.

Galerie

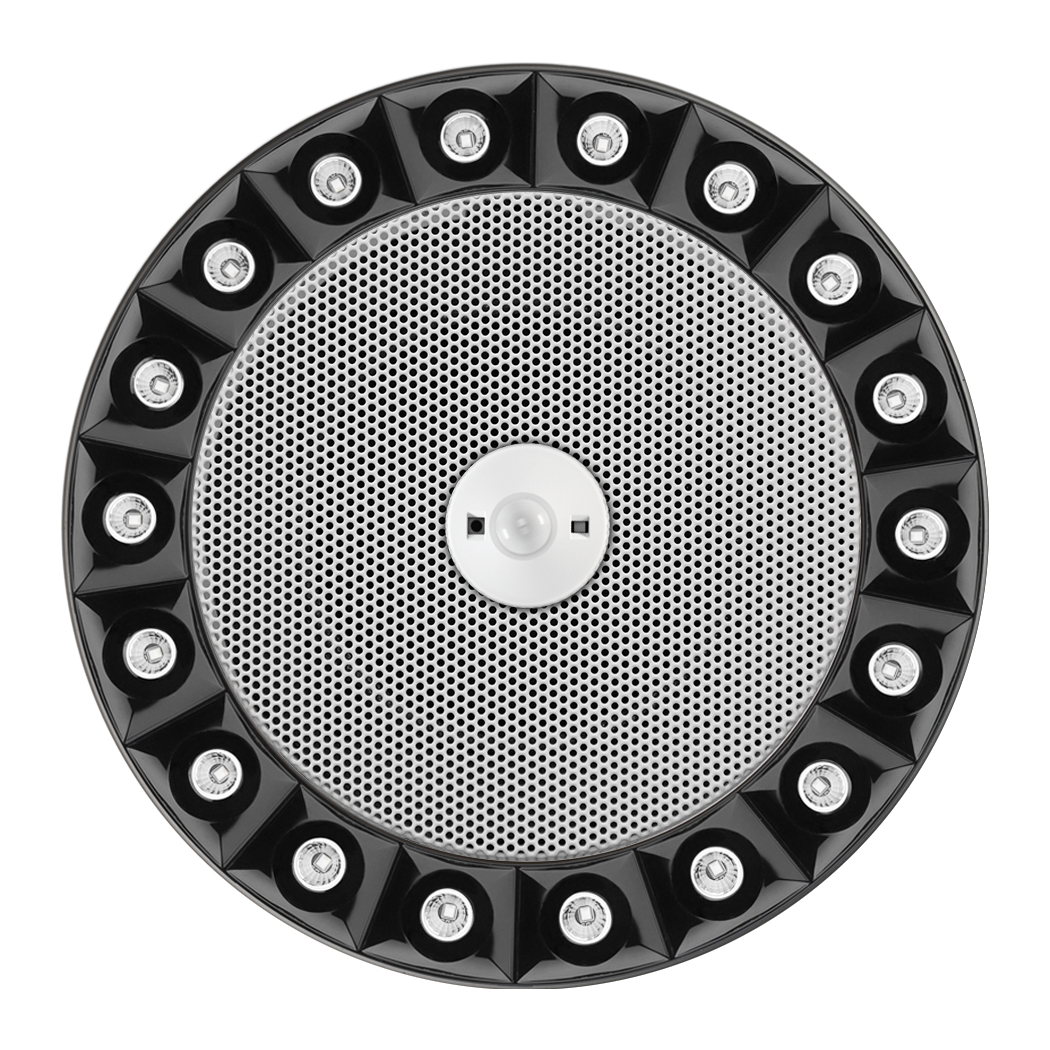

Blade R + multisensor

ø 125 / ø 170

This constantly monitors people’s movements and lighting conditions (lux), ensuring comfort and energy savings. Compatible with a Quick BLE Bluetooth system and fitted with a Beacon for activating smart services.

Galerie

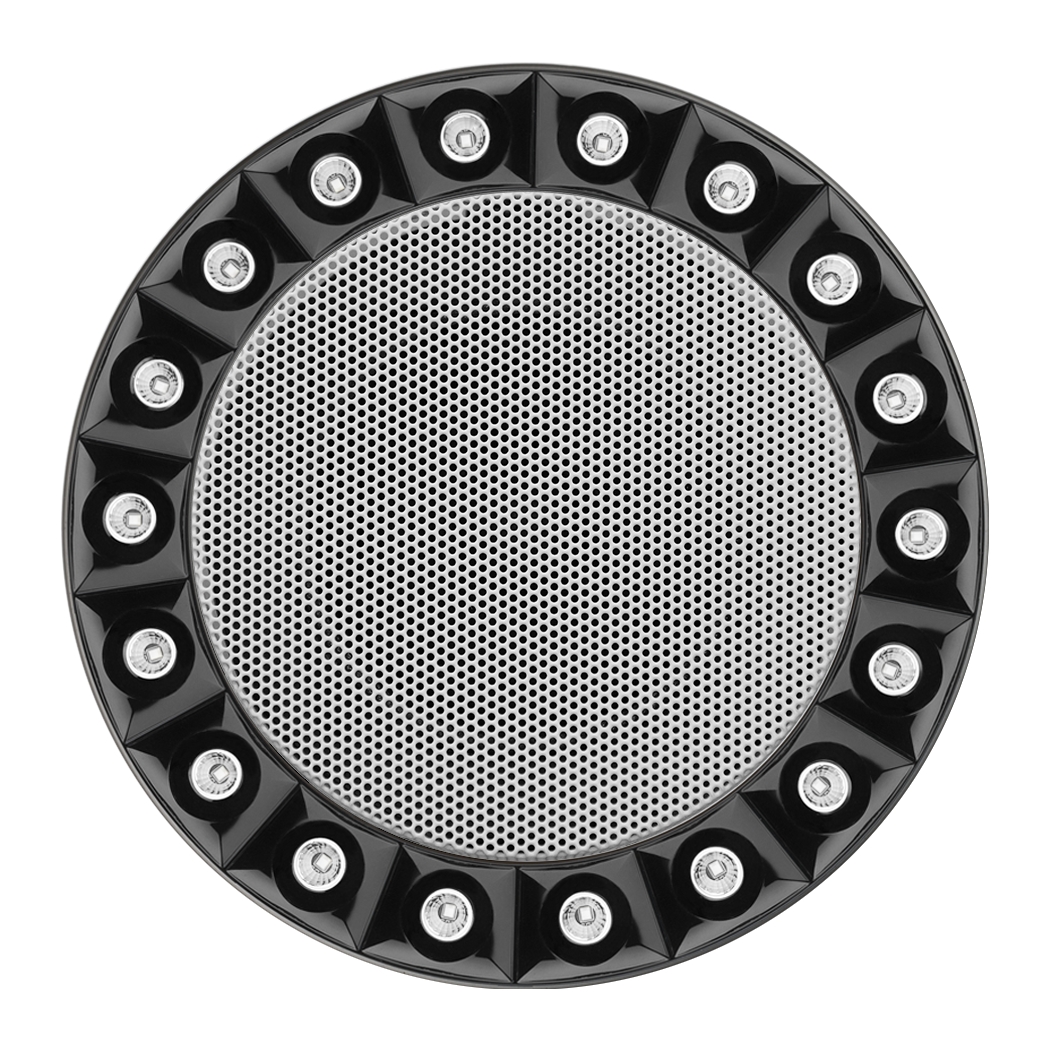

Blade R + loudspeaker

ø 170

High performance CPR / EN54 - 24 certified loudspeaker that can adapt to traditional audio systems (8 ohm) or audio systems for music/evacuation messages (P.A. 100 V).

In partnership with FBT.

Galerie

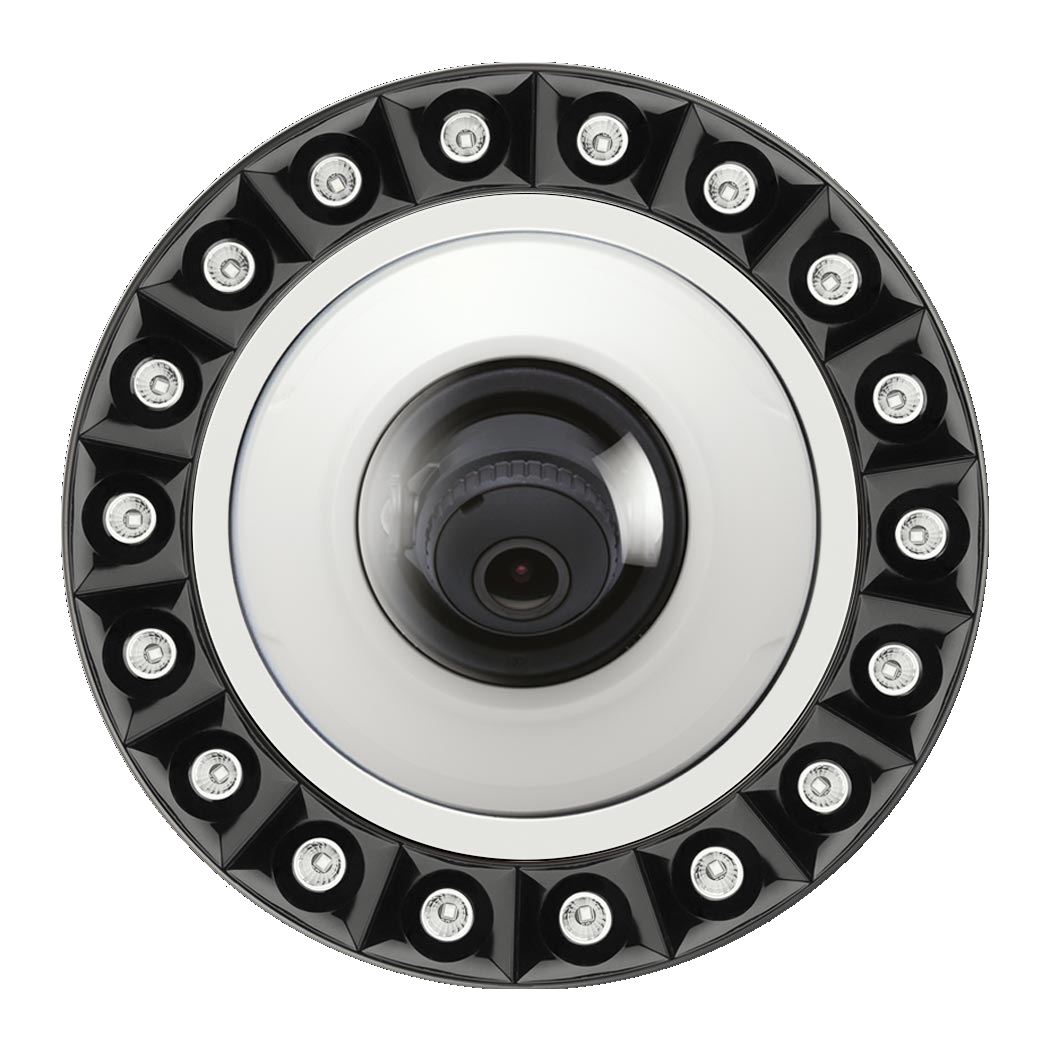

Blade R + camera

ø 170

Ideal video camera for any location where high quality 360° video monitoring is required to protect resources.

In partnership with AXIS Comunications.

Galerie

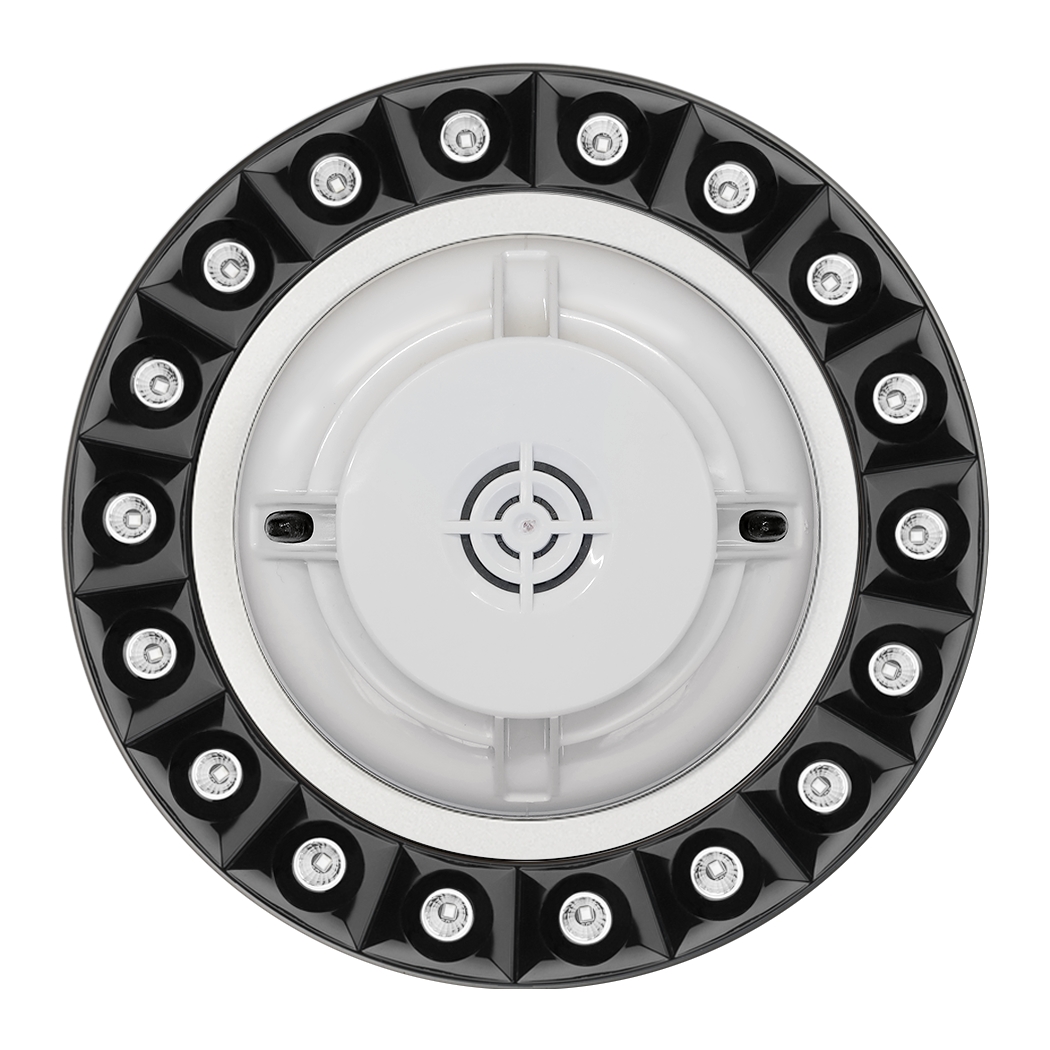

Blade R + smoke detector

ø 170

Optical smoke detector comprising an optical chamber sensitive to diffusion of light. CPR certificate in compliance with EN 54 part 7 and 17 *.

In partnership with NOTIFIER® by Honeywell.

Galerie

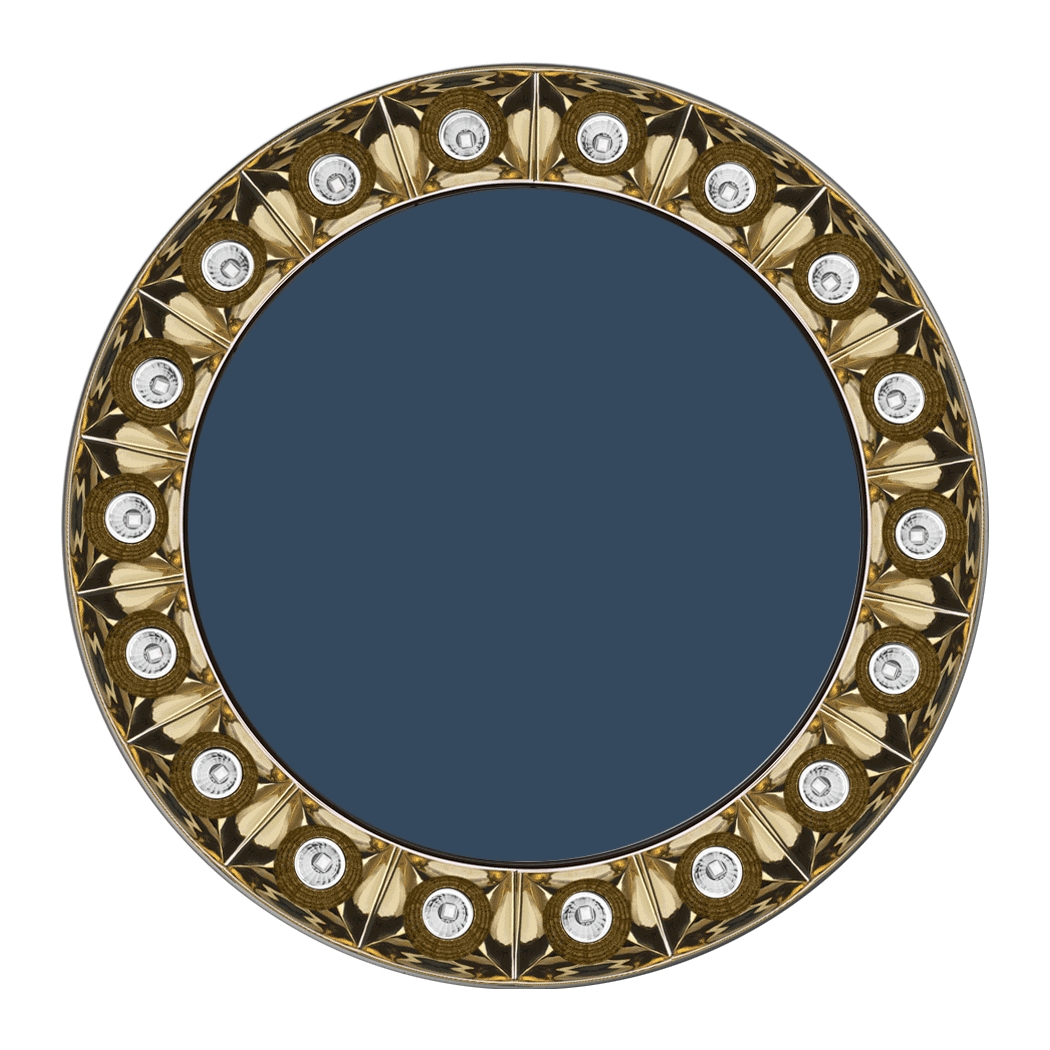

Blade R + customisable cover

ø 80 / ø 125 / ø 170

Blade R has a number of different, standard and order-only finishes. To ensure the device blends in completely with the architecture, the central cover is customisable and can be painted any colour to match the ceiling.

Galerie

Galerie

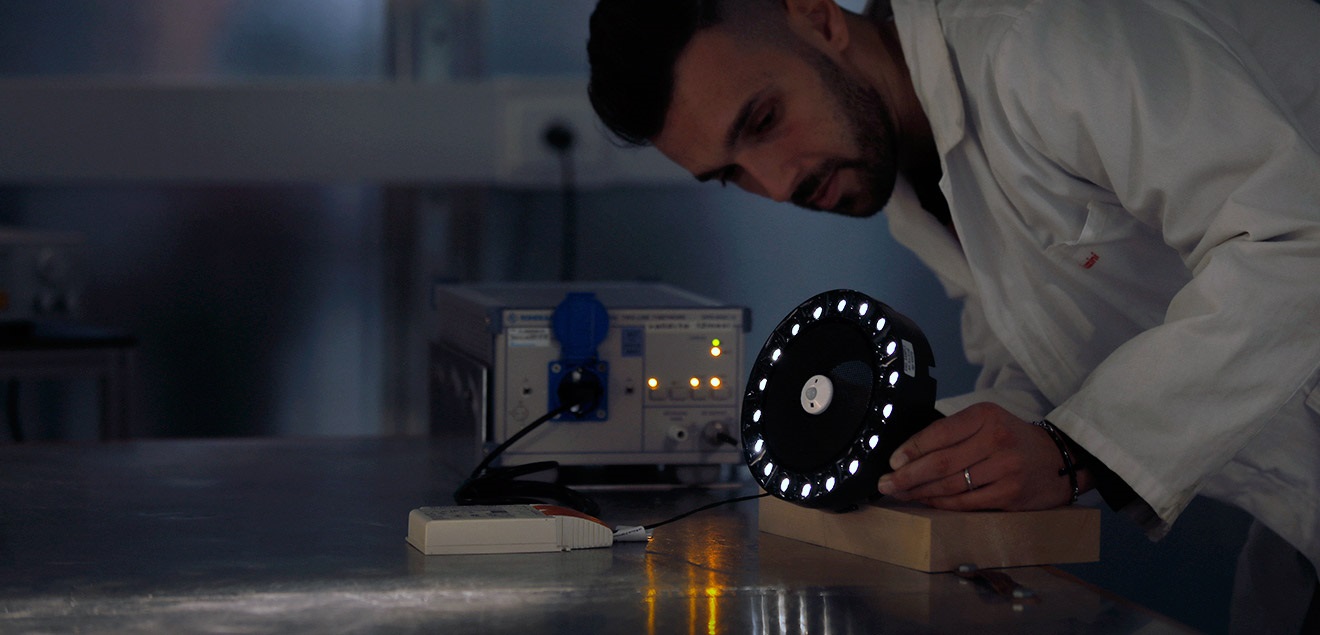

Extreme reliability

All Blade R integrated solutions have been tested and certified in compliance with standards regarding luminaires* to guarantee their correct operation also when other devices are attached. (This includes safety, electromagnetic compatibility, photobiological risk and photometry.) In the same way, the performance of the devices that operate inside Blade R luminaires have also been tested and certified in compliance with respective reference standards. Blade R All in One, in terms of reliability too.

*Lighting: EN 60598-1/ EN 60598-2-2/ EN 60598-2-22, EN 62471 - IEC 62778, EN 55015/ EN 61000-3-2/ EN 61000-3-3/ EN 61547, EN 13032-4.
