MC Fire Roof, the new fire protection system for roof skylights

MC Fire Roof, the new fire protection system for roof skylights

New system in Aliplast offer

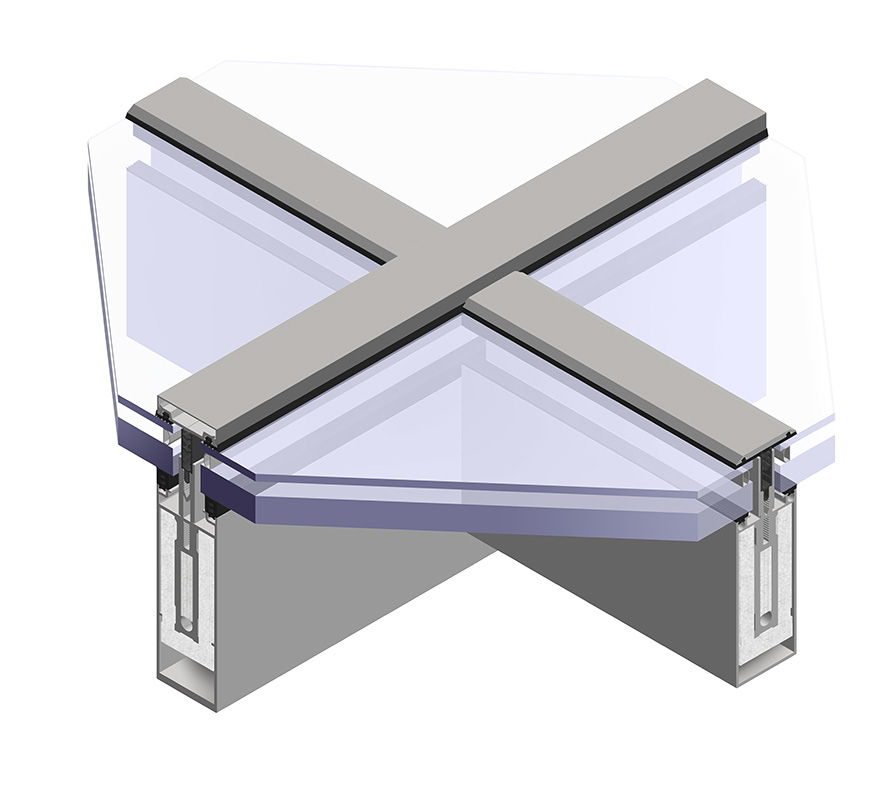

The load-bearing profiles of the structure (posts/rafters and beams/purlins) are reinforced with appropriately matched aluminium cores, which are filled and lined with fire resistant inserts. The posts and beams are additionally connected with each other by means of designed stainless steel pins. There is a wide range of masking profiles and roof-plane strips available in the system, giving the structure an aesthetic appearance.

MC Fire Roof, the new fire protection system for roof skylights
MC Fire Roof, the new fire protection system for roof skylights

Product characteristics:

  • Using appropriate glass (different variants available) achieves the REI45 rating (according to PN-EN 13501-2:2016-07)
  • The structure of the MC FIRE ROOF skylight can be inclined from 0° to 80° (applies to fire rating). A double pitched structure is also possible, also as a vertical wall transforming into the skylight (knee wall)
  • The maximum glass dimensions are 1300×2400 (EI30)
  • Glazing thickness ranging from 40 to 66 mm can be used in the system
  • Non-rectangular glass is also possible
  • The maximum depth of poles/rafters depends on strength calculations and ranges from 104 to 326 mm
  • The maximum depth of beams/purlins depends on strength calculations and ranges from 113 to 294 mm.

Produse mentionate in articol

Sistem de luminatoare cu protectie impotriva incendiilor MC Fire Roof

Sistem de luminatoare cu protectie impotriva incendiilor MC Fire Roof

Profilele portante ale structurii sunt intarite cu miez de aluminiu potrivite corespunzator, care sunt umplute si captusite cu insertii rezistente la foc. Stalpii si grinzile sunt conectate suplimentar intre ele prin intermediul unor stifturi din otel inoxidabil.
