Characterized by minimal visibility of the edges of aluminium profiles

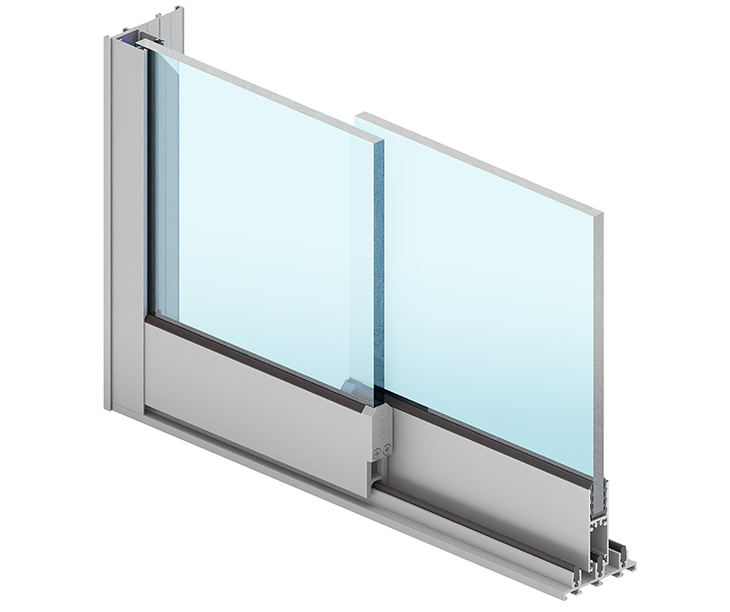

Slide Glass sliding system for glass structure installation without thermal insulation, characterized by minimal visibility of the edges of aluminium profiles.
Characteristics:
- sliding door systems, offer great possibilities of arrangement
- the maximum dimensions of the leaf: height up to 2600, width: 500-1600 mm, maximum leaf weight 80 kg
- the possibility of using 3-, 4- and 5-track guides
- due to the fact that Slide Glass is an aluminum structure, it guarantees lightness, solidity and durability
- the system can be used as pergola walls.
Sliding system for glass structure installation without thermal insulation, characterized by minimal visibility of the edges of aluminium profiles.
- the Slide Glass system offers a solution for a profile-free labyrinth joint (without sealing) or a joint between movable door leaves using a narrow brush profile
- possibility of using 3-, 4- and 5-track guides
- infill: 10 mm thick tempered glass
- concealed drainage is possible in the system through lower subframe profiles
- the system is equipped with dedicated hardware:
- adjustable or non-adjustable trolleys
- glass-fixed handle pull
- and special hook locks - it can be closed using the built-in catch or the side closure with a lock
- the rails for moving the door leaves can be made of aluminium or stainless steel (the rails can be independent, mounted in the travel tracks)
- system-based solutions provide for the possibility of compensating deflections from components located above the sliding body
- a wide range of colours available - RAL palette (Qualicoat 1518), structural colours, Aliplast Wood Colour Effect (Qualideco PL-0001), anodized (Qualanod 1808), bi-colour.
System application:

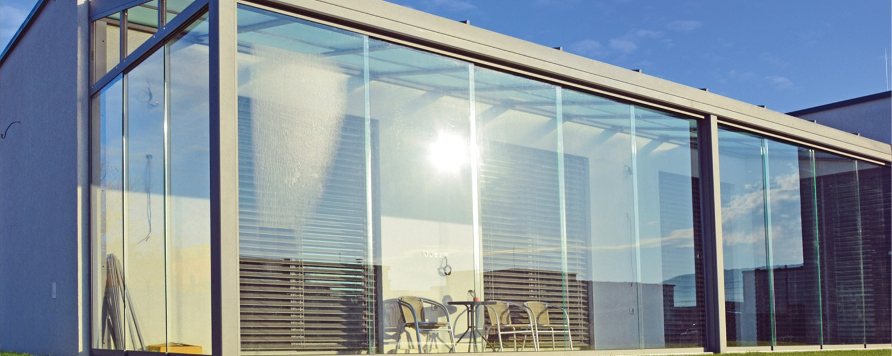

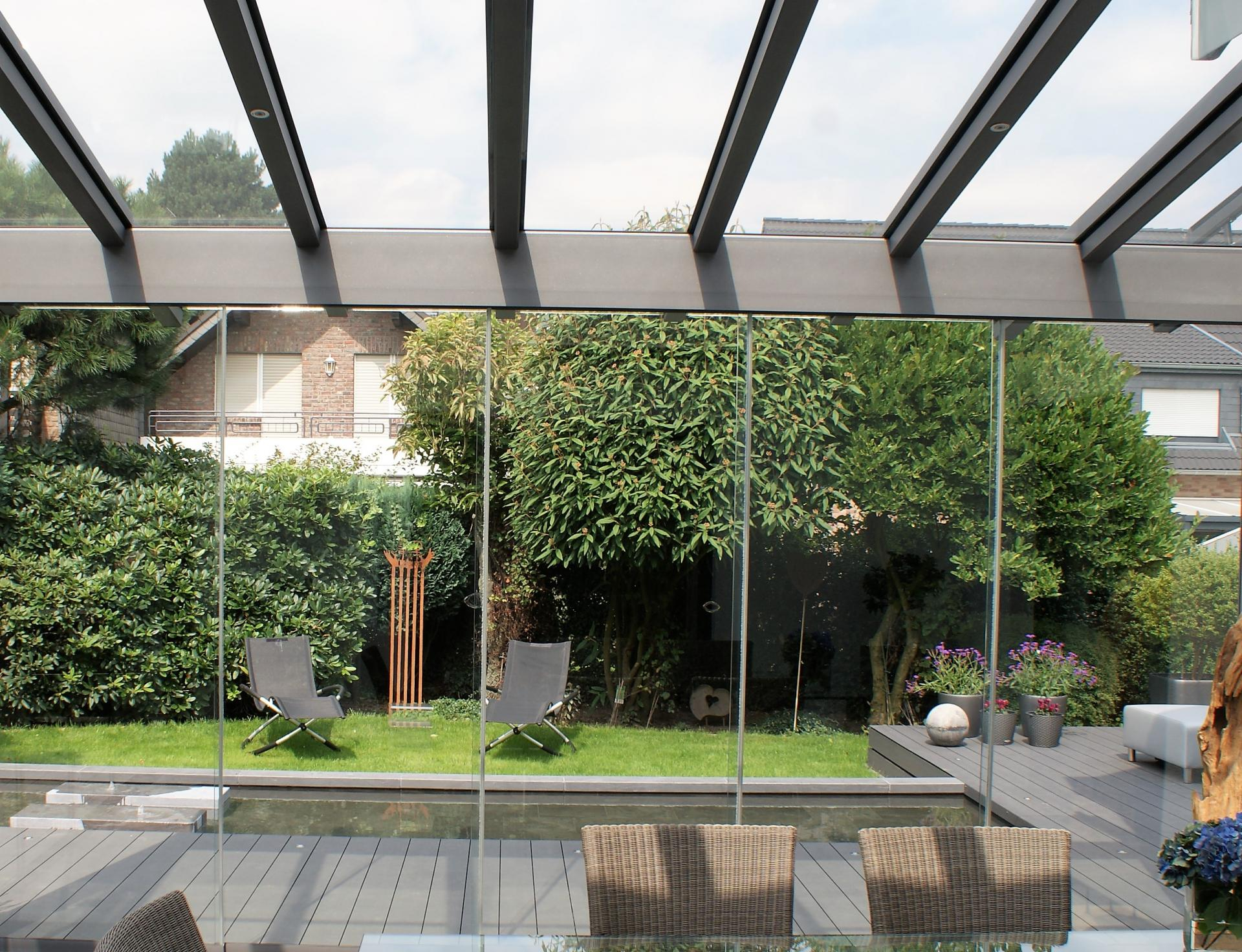

- installation of vertical walls in pergolas, terraces, etc.
- sliding glass doors.
